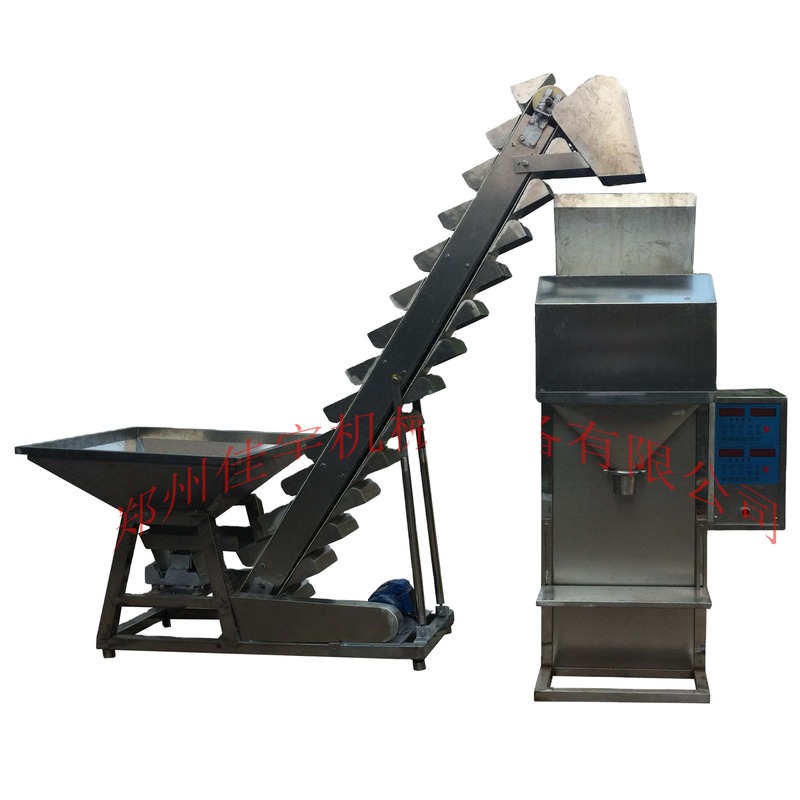

Automatic Food Peanut Packing Machine Granule Packing Machine

JY-KLBZ Four Bucket Automatic Weighing Machine

The machine mainly packs materials with good fluidity such as rice, miscellaneous grains, dry seasonings, seeds, salt, feed, monosodium glutamate, dried fruits, sugar and other quantitative packaging. Only the bag is manually applied during the work process, and the measuring bagging machine is completed.

Job Description: After the equipment is installed, the power supply ventilation is adjusted. After the packaging parameters are input into the control system, the machine is started. The feeding mechanism of the packaging machine is started. The material in the raw material warehouse flows through the gate to the measuring bucket. The sensor will measure the material in the bucket. The weight is transmitted to the control instrument, and the meter stops the fast feeding according to the set parameters (closes part of the gate), the slow feeding mechanism continues to work, and the slow feeding mechanism stops after reaching the set packing weight. Manually put the pre-made packaging bag to the machine feeding opening, touch the travel switch, the machine automatically clamps the packaging bag, and gives the bag personnel to leave the packaging bag for the second packaging. At the same time, the control system automatically measures the inside of the weighing bag. The material is discharged into the package. After a delay of a few seconds, the bagging device (loose bag) is opened to complete the bagging measurement. The packaged bag is then transported by the transport mechanism to the sealing machine for sealing.

Features:

1. High precision, high speed, long life, good stability, manual bagging, automatic metering.

2. Not subject to the restrictions of packaging containers, suitable for occasions where the variety of materials and packaging specifications change frequently.

3. Designed for vibration feeding and electronic weighing, which overcomes the shortcomings of measurement error caused by the change of material specific gravity.

4. The digital display is simple and intuitive, the packaging specifications are continuously adjustable, the working state is arbitrarily changed, and the operation is very simple.

5. For dusty materials that are easy to produce, we can install the dust-removing interface or vacuum cleaner independently designed by our company.

6. The material contact part is made of stainless steel, which effectively solves the corrosiveness of the material.

7. Its design, less transmission parts, no need to install and maintain the platform bracket.

8. Three-speed feeding mode of adjustable gate, with automatic fast and slow feeding, higher measurement accuracy.

9. There are high-speed metering to improve production efficiency.

10. Fully automatic error detection function for online weight monitoring.

11. Capacity accumulation memory function, can check the production weight of the shift, the number of bags.

12. Quick pneumatic bag, directly bagged and weighed.

13.10 kinds of different packaging weights are pre-stored to meet the requirements of various metering and packaging, and the formula can be quickly and conveniently transferred.

14. When the packaging specification is <10g, the two scales are alternately discharged. When the packaging specification is >5000g, the two scales are discharged in parallel.

Working Principle:

1. Single-chip operation, digital tube display.

2. The electromagnet vibration base is cast iron.

3. Weighing bucket sensor is produced by AVIC Electric Co., Ltd.

4. The vibrator electromagnet is produced and supplied by Xinxiang Gaofeng Electrical Appliance Factory.

5. The working receiving port is 720cm away from the ground.

Technical Parameters:

Measuring Method: weighing type (industrial electronic scale)

Machine Power: 500 watts

Feeding Method: Four vibrators, eight grade feed

Unloading Method: single bucket cutting and combination cutting, single bucket cutting refers to the same product inside the specified package grams to cut off, combined cutting refers to multiple buckets in multiple different products at the same time filling Heavy, reaching the grams of packaging while the material is finally poured into a container

Packing Specification: 50g-5000g 400g-10kg (resolution adjustable)

Weighing Range: 50g-5000g 400g-10kg

Material: All stainless steel

Single Bag Error: ±1g ~ ±3 (determined error according to material flowability)

Packing Speed: 20-60 bags / hour

Machine Weight: 200 kg

The Whole Machine Volume: 720×720×2200mm

Bucket Elevator

The conveyor is used to move the package from one location to another without additional operational control. Set up with forward and reverse job function. The frame is made of carbon steel sprayed material, full roller installation and industrial grade traction conveyor belt of nitrile tape. The roller is made of stainless steel. The motor adopts stepless speed regulating motor with power of 0.75KW.
