3d Expandable EPS Panel Foam Packing Sheet Molding Machine Polystyrene Block Molding Machinery

1 Set
MOQ
$38,000.00(>=1 Sets)
τιμή
3d Expandable EPS Panel Foam Packing Sheet Molding Machine Polystyrene Block Molding Machinery
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Processing Type: Foaming Machine
Product Type: Foam Net
Machine Type: EPS
Voltage: 380V
Dimension(L*W*H): 5700*4000*3000
Power (kW): 1-5000
Weight (KG): 8000 KG
Warranty: 1 Year
Key Selling Points: High Productivity
Showroom Location: None
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant
Marketing Type: Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, PLC
Product Name: EPS Block Making Machine
Πιστοποίηση: CE
Application area: 3d panel,sandwich panel,wall panel insulation
Material: Steel structure, stainless steel
After-sales Service Provided: Online support
Automatic: Fully-auto
Featur: Easy to make high density blocks
Operation: PLC and touch screen
Βασικές πληροφορίες
Πιστοποίηση: CE
Πληρωμής & Αποστολής Όροι
Supply Ability: 3000 Set/Sets per Year
Περιγραφή προϊόντων

Product introduction

EPS Block Molding Machine is used to make EPS blocks, then cut to sheets for house insulation or packing. Popular products made from EPS sheets are EPS sandwich panels, 3D panels,building external walls， inner wall insulation panels, glass packing, furniture packing and some EPS foam packages industry.

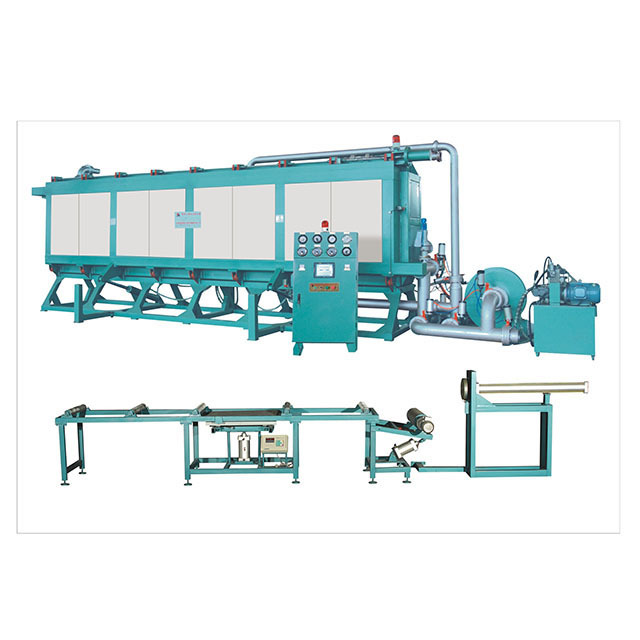

Pictures of Eps Block Moulding Machine
Main Features
1. Machine is made of high strength pipe and steel plate, all the steel is under heat treatment, sand blasting, spraying antirust
painting, to increasing strength, not rust, to ensure machine operation is stable and long service life.
2. Machine adopts advanced processing technology and better pipe structure design, greatly improving the production efficiency.
3. Machine use unique heating process and efficient vacuum with condensing system, has strong steam penetrating power and energy
saving design. Produced blocks have excellent cohesiveness, low moisture content, to ensure every customer’s satisfy.
4. Adopt PLC and touch screen control system, equipped with material level sensor can realize automatic control of feeding,
equipped with foam pressure sensor control cooling time automatically.
5. Machine use good quality electrical, pneumatic components, valves and other parts. And the parts with international standard,
so customer is easy to find replacement at local.
6. Machine adopts hydraulic pressure station to be the center control system. Use hydraulic open door, ejector de-mould and
locking, guarantee the machine running smoothly, stable performance.
Technical Data
Item
PSB200TZ
PSB300TZ
PSB600TZ
PSB400TZ
Mould Cavity Size
mm
2050*1240-940*1030
3060*1240-940*1030
4080*1240-940*1030
6100*1240-940*1030
Block Size
mm
2000*1200-900*1000
3000*1200-900*1000
4000*1200-900*1000
6000*1200-900*1000
Steam
ENTRY
DN150
DN150
DN150
DN200
Consumption
25-45kg/cycle
45-65kg/cycle
60-85kg/cycle
95-120kg/cycle
Pressure
0.6-0.8MPa
0.6-0.8MPa
0.6-0.8MPa
0.6-0.8MPa
Compressed Air
Entry
DN40
DN40
DN50
DN65
Consumption
1.5-2m³/cycle
1.8-2.2m³/cycle
2-2.5m³/cycle
2-2.3m³/cycle
Pressure
0.6-0.8MPa
0.6-0.8MPa
0.6-0.8MPa
0.6-0.8MPa
Vacuum Cooling Water
Entry
DN40
DN40
DN40
DN40
Consumption
0.2-0.4m³/cycle
0.4-0.6m³/cycle
0.6-0.8m³/cycle
0.8-1m³/cycle
Pressure
0.4-0.6MPa
0.4-0.6MPa
0.4-0.6MPa
0.4-0.6MPa
Drainage
Vacuum drain
φ100mm
φ125mm
φ125mm
φ125mm
Steam vent
φ100mm
φ100mm
φ200mm
φ200mm
Condensate
φ150mm
φ150mm
φ150mm
φ150mm
Blower outlet
φ100mm
φ100mm
φ150mm
φ150mm
Throughpt
15kg/m3
4min/cycle
6min/cycle
7min/cycle
8min/cycle
Power
23.75Kw
24.75Kw
28.5Kw
37.5Kw
Overall Dimension
L*W*H
5700*4000*3300
7200*4500*3500
11000*4500*3500
12600*4500*3500
Weight
8000kg
9500kg
15000kg
18000kg
Room Height Required
6000mm
6000mm
6000mm
6000mm
EPS bock Machine loading container：
EPS Products:
